Project Timeline: 1-3 weeks
Solo Project: Annie Roo
Project Objective: To design, CAD, and 3D print various antenna holders to undergo various testing scenarios
designed for: Jordan Ashley Ramsey & Mark Lust

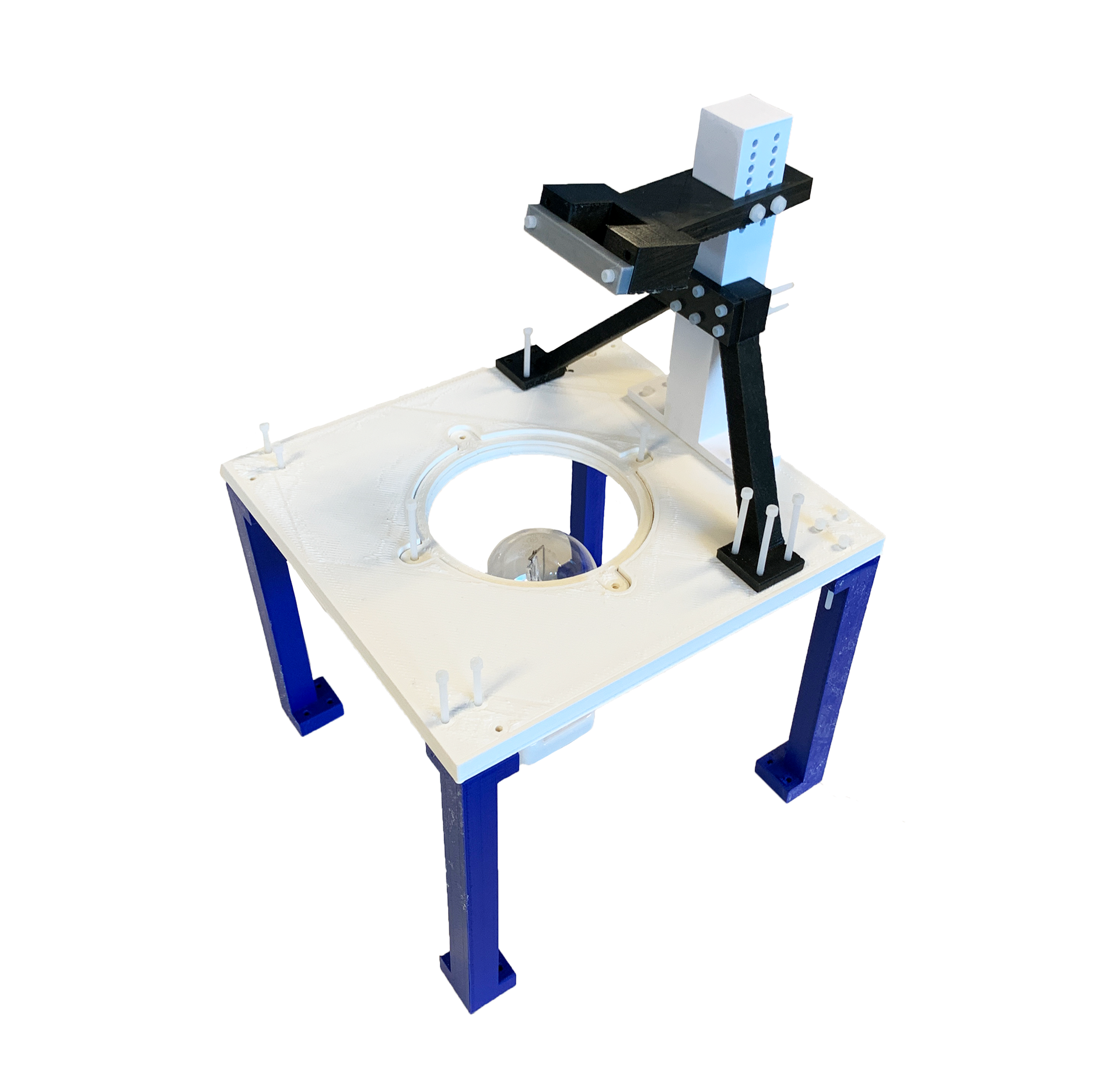

REFLECTARRAY FIXTURE
Design, CAD, and 3D Print a fixture to hold stably hold a reflectarray antenna at a specified angle and offset while undergoing testing at the ElectroScience Lab's Anechoic Chamber using a light bulb to provide thermal cycling to a VO2 wafer.

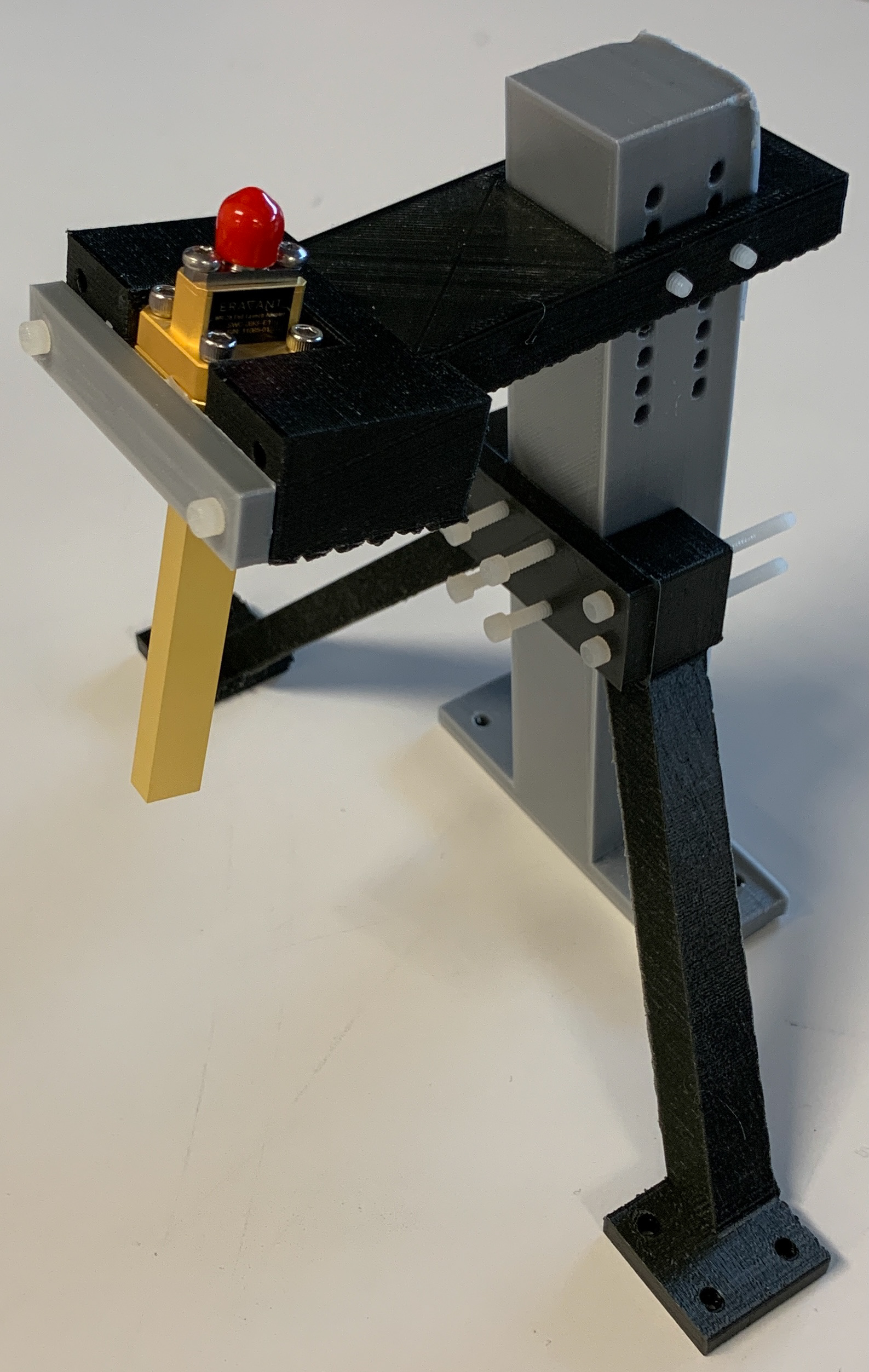

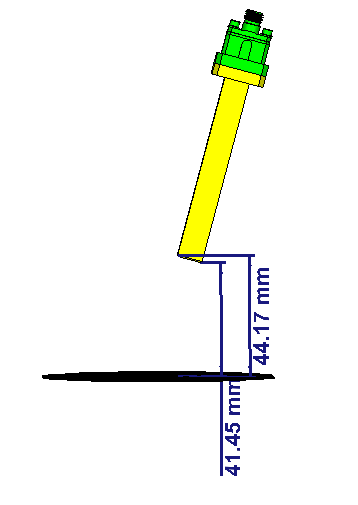

Reflectarray antenna form and orientation during testing specifications

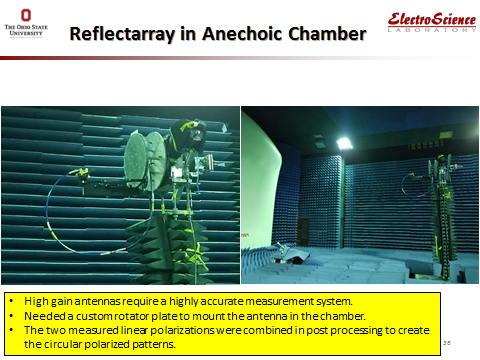

Previous reflectarray setup in ESL's anechoic chamber
IDEATION SKETCHES & SOLIDWORKS CAD

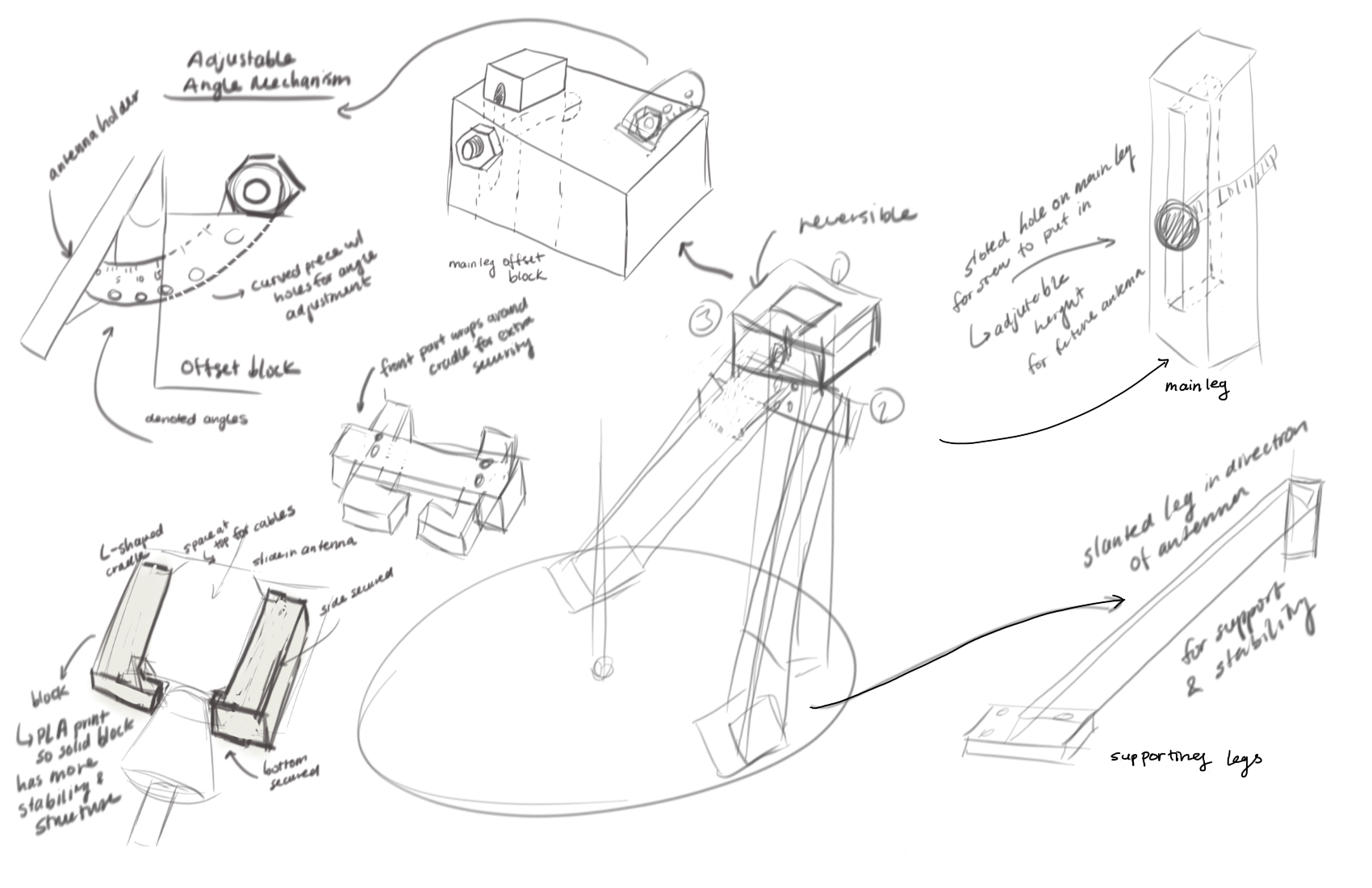

Ideation Sketches on a modular fixture design

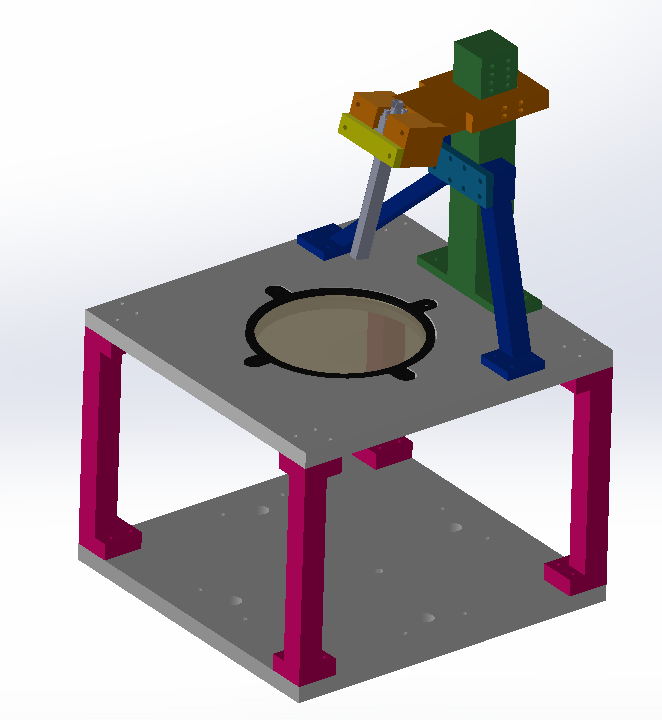

Finished CAD file with antenna
DUAL ANTENNA HOLDER
Design, CAD, and 3D print a series of antenna holders to enable 2-port testing capabilities on the VNA and allow for easy orientation changing while the holder is attached to the arm of a FANUC robot.

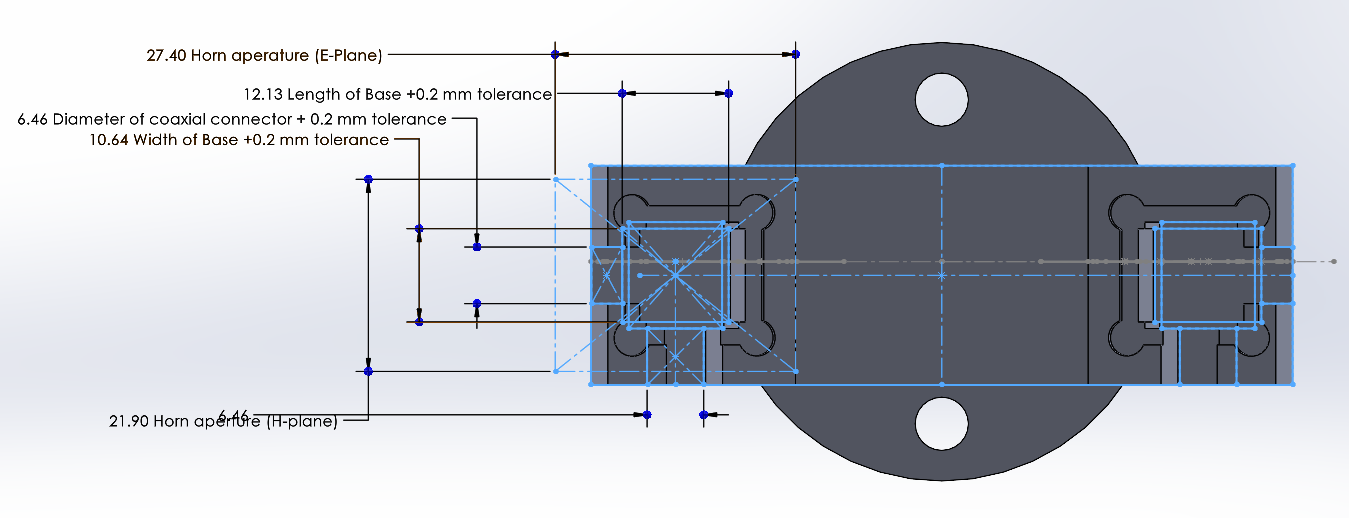

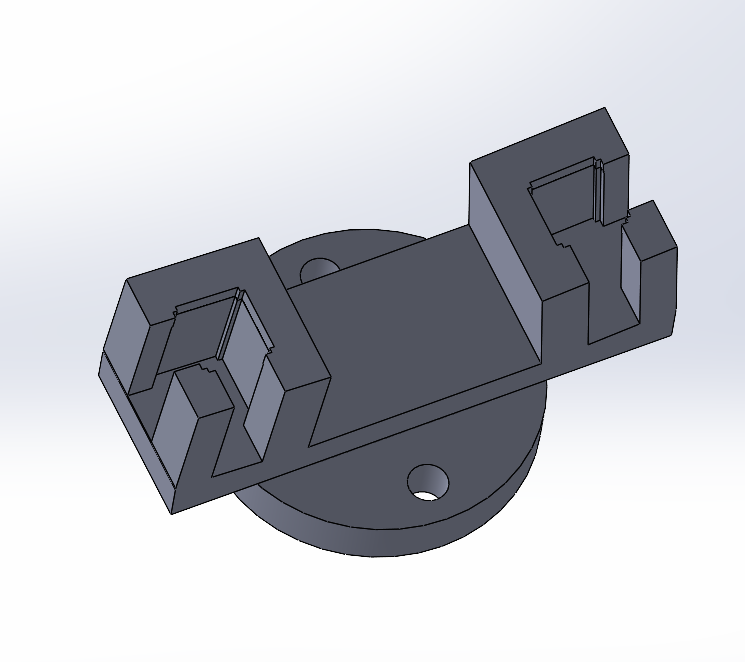

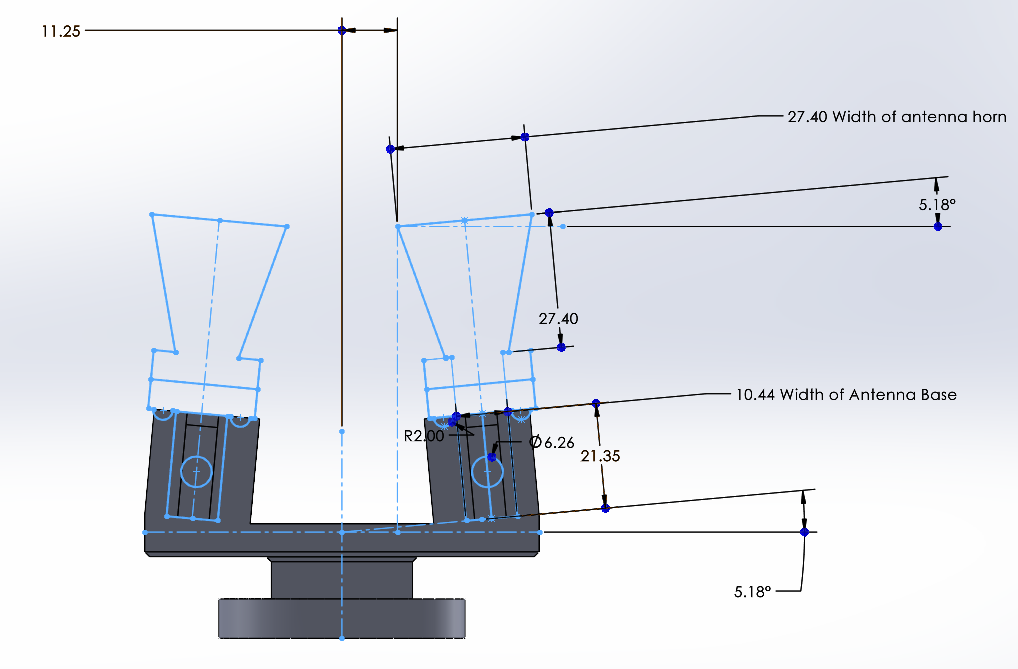

Solidworks CAD Design

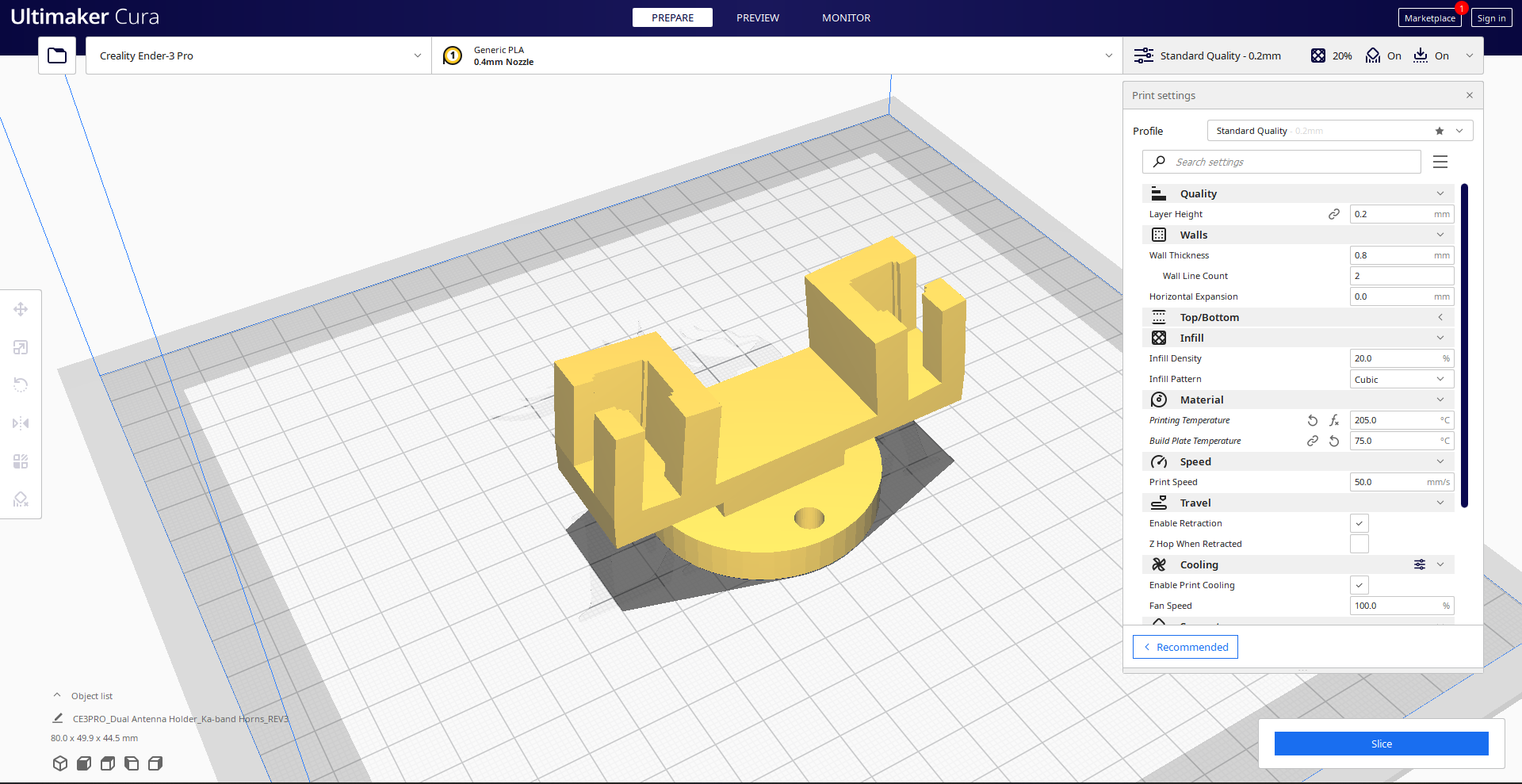

Cura STL Generation for 3D Printing

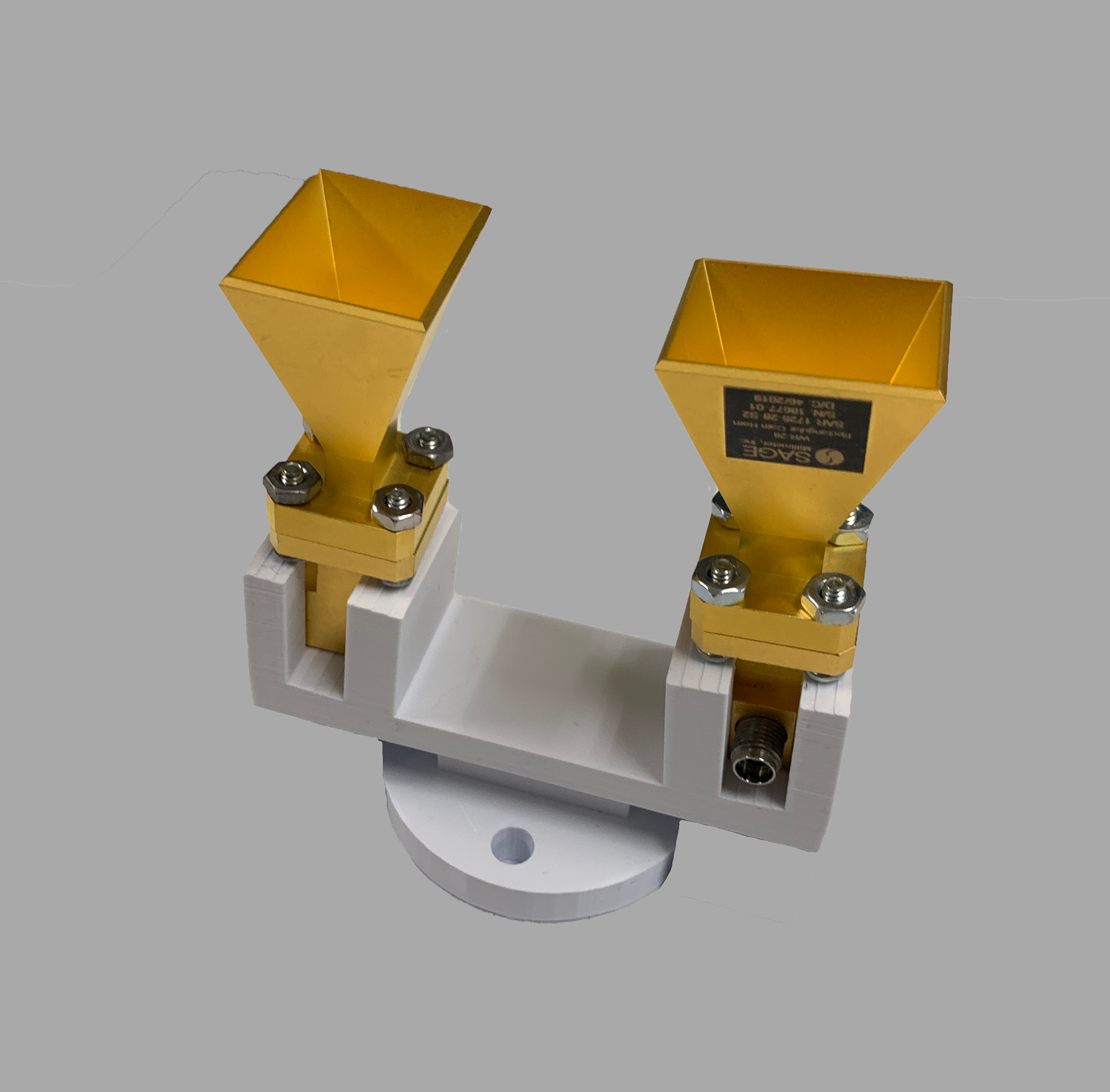

Dual Antenna Holder 1 - with antennas attached in same orientation and absorbers installed

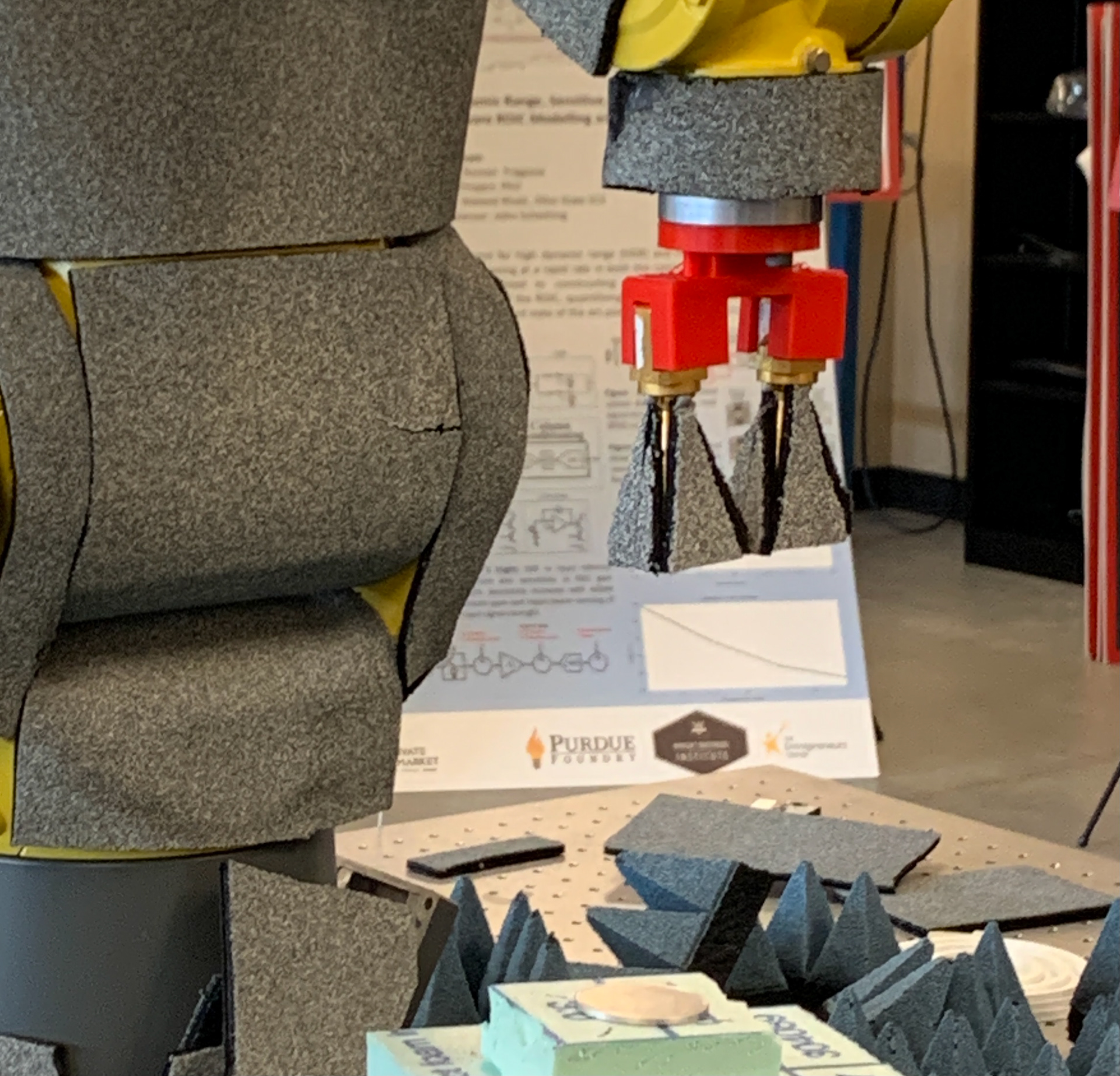

Antenna holder installed on FANUC robot performing testing
